Sizetec Screens are designed for efficient mineral processing while keeping in mind the importance of easy maintenance capabilities. Some of the common features include:

  • High capacities with high frequency and high "G" force vibration
  • Low profile screen box design and construction
  • Trunnion suspension with heavy duty coil springs
  • Directly driven by reliable vibrator motors with grease lubrication
  • Interchangeable screen decks among polyurethane screen, profile or wedge wire screen and pretension framed woven wire screen panels
  • Easy change of deck angle to fit retention time needs
  • Rugged Screen Frame of welded construction, thermal stress relief 6’ and wider

Screen Sizing Questionnaire

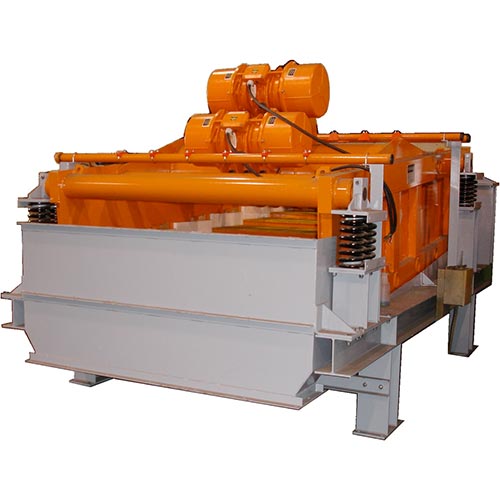

Intensive Dewater Screen (Curve Deck Model)XIntensive Dewater Screen (Curve Deck Model)

Curve Deck Model IDS 24R36, IDS 30R48, IDS 30R68

  • High frequency linear stroke vibrating motion
  • Combined sieve bend screen with up-slope flat screen in step down transition
  • Available in many standard screen sizes: IDS 15R24 (2'x6'); IDS 24R36 (3'x9'); IDS 30R48 (4'x12'); IDS 30R68 (6'x12')
  • For efficient sizing and dewatering operation with screen opening size ranging from 8 mesh to 60 mesh (3 mm to 250 micron)
  • For polishing and dewatering of spiral clean coal
  • For maximum dewatering of fine coal refuse

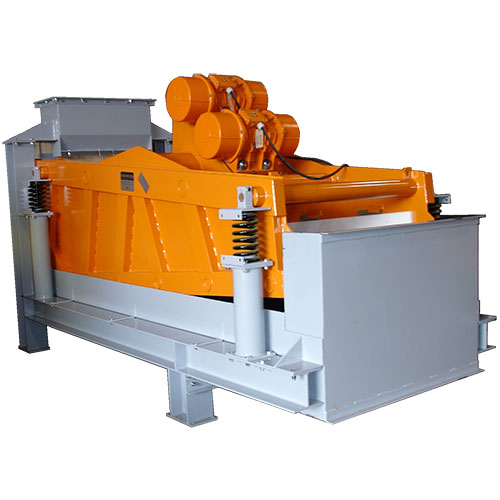

Intensive Dewater Screen (Reverse Angle Deck Model)XIntensive Dewater Screen (Reverse Angle Deck Model)

Reverse Angle Deck Model VDS 27, VDS 38, VDS 310, VDS 410, VDS 512, VDS 612, VDS 714

  • High frequency linear stroke vibrating motion
  • Down to uphill deck arrangement as "V" shape transition
  • Available in many standard screen sizes: VDS 27 (2'x7'); VDS 310 (3'x10'); VDS 410 (4'x10'); VDS 512 (5'x12'); VDS 612 (6'x12'); VDS714 (7'x14'); VDS 814 (8'x14')
  • For water droplets free dewatering of fine materials ranging from 4 mesh to 150 mesh (5 mm to 100 micron)
  • For best dewatering operation for concrete sand
  • For dewatering of silica sand, sinter ore, fine coal, refuse phosphate, potash, boiler bottom ash, etc.
  • For 100 mesh to 400 mesh fine sand recovery from sand plant effluent

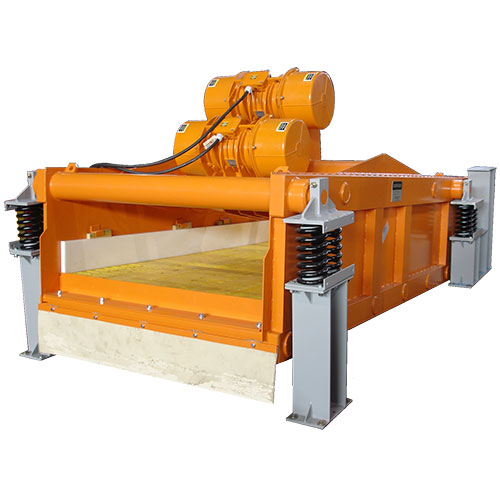

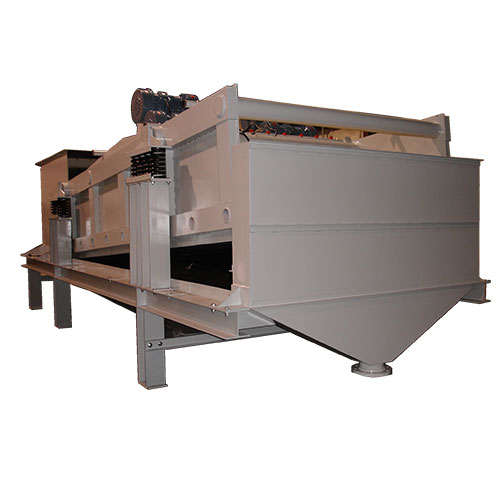

Horizontal Deck ScreenXHorizontal Deck Screen

MODELS HDS 28, HDS 38, HDS 316, HDS 412, HDS 416, HDS 420, HDS 512, HDS 516, HDS 520, HDS 612, HDS 616, HDS 620, HDS 716, HDS 720, HDS 816, HDS 820

  • High or low frequency linear stroke vibrating motion
  • Horizontal or up-hill installation
  • Extra rugged screen construction for heavy load operation
  • Available in many standard screen sizes: HDS 412 (4' x 12'); HDS 512 (5' x 12'); HDS 612 (6'x12'); HDS 714 (7'x14'); HDS 816 (8'x16')
  • For wet or dry sizing operation ranging from 4 inch to 50 mesh (100 mm to 0.3 mm)
  • For trash screen for cyclone overflow in mill grinding circuit
  • For high capacity carbon safety screen in CIL & CIP operations
  • For sag mill discharge screen
  • For rinse and drain screen operation
Dewatering Fines ScreenXDewatering Fines Screen

MODELS DFS 24, DFS 26, DFS 36, DFS 38, DFS 48, DFS 412, DFS 58, DFS 512

  • High frequency linear stroke vibrating motion
  • Horizontal or up-hill installation
  • Available in many standard screen sizes: DFS 24 (2' x 4'); DFS 26 (2'x6'); DFS 36 (3'x6'); DFS 38 (3'x8'); DFS 48 (4'x8'); DFS 410 (4'x10'); DFS 512 (5'x12')
  • For wet fine particle size separation ranging from 4 mesh to 400 mesh (5 mm to 38 micron)
  • For trash screens
  • For resin screens
  • For CIL carbon screens
- Loaded carbon screens
- Carbon sizing screens
- Carbon dewatering screens
- Carbon safety screens

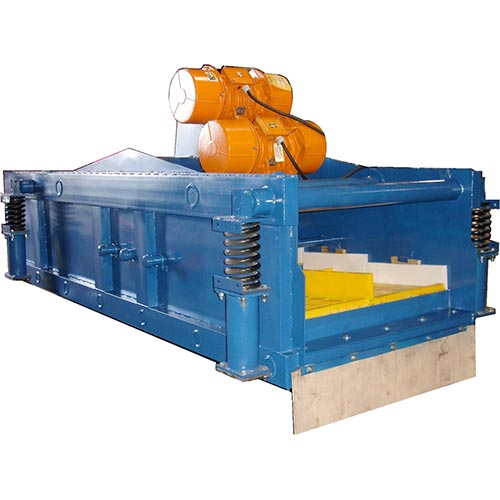

Step Deck ScreenXStep Deck Screen

MODELS SDS 28, SDS 210, SDS 38, SDS 48, SDS 412, SDS 416, SDS 420, SDS 58, SDS 512, SDS 516, SDS 520, SDS 612, SDS 616, SDS 620, SDS 716, SDS 720, SDS 816, SDS 820

  • High or low frequency linear stroke vibrating motion
  • Horizontal or Up-Hill deck installation with multiple steps down
  • Direct driven by reliable vibrator motors
  • Efficient sizing with tumbling at each step down
  • Scalping before Gravity Concentrator
  • Sizing of Scrubber and SAG Mill Discharge
  • Sizing of Frac Sand, Potash and Phosphate
  • Loaded carbon washing in CIP/CIL
  • Carbon Sizing Before CIL, CIP, CIC
  • Carbon Dewatering Before Reactivation Kiln
  • Magnetic Separator Feed

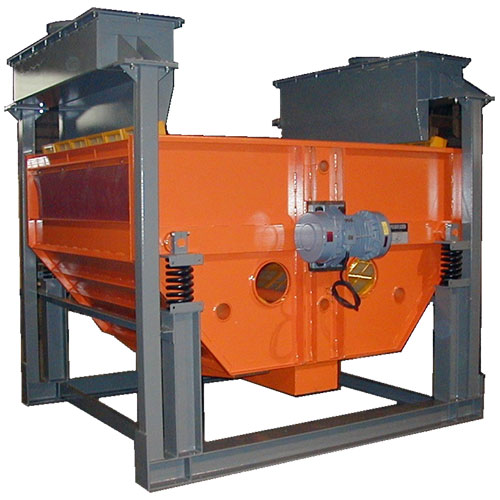

Dual Sieve ScreenXDual Sieve Screen

MODELS DSS 4560, DSS 6560

  • High frequency vertical linear stroke motion
  • Dual outside feeds, single center overs product discharge
  • Two sieve bend screen decks face to face with 4'W x 60"R x 60 degree each
  • For fine coal processing (polishing, preliminary dewatering, desliming, reclaiming)
  • For mineral ore processing (fine sizing of gold ore, taconite, bauxite, phosphate, potash, silica sand, etc.)
  • For chemical processing (liquid-solid separation, removing fibrous solids)
  • For pulp and paper processing
  • For food and alcohol processing
  • For waste water and sewage treatment

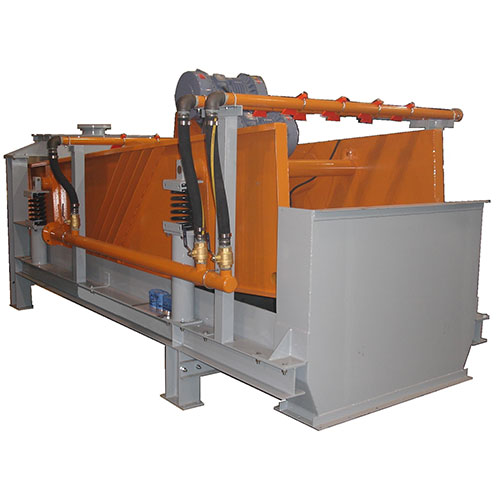

Drain & Rinse ScreenXDrain & Rinse Screen

MODELS DRS 416, DRS 420, DRS 516, DRS 520, DRS 616, DRS 620, DRS 716, DRS 720, DRS 816, DRS 820

  • High or low frequency linear stroke vibrating motion
  • Up-Hill deck installation with multiple steps down
  • Direct driven by reliable vibrator motors
  • Efficient washing with tumbling at each step down
  • Heavy Minerals in DMS
  • Diamond in DMS
  • Clean Coal in DMS
  • Coal Refuse in DMS
  • De-sliming raw coal

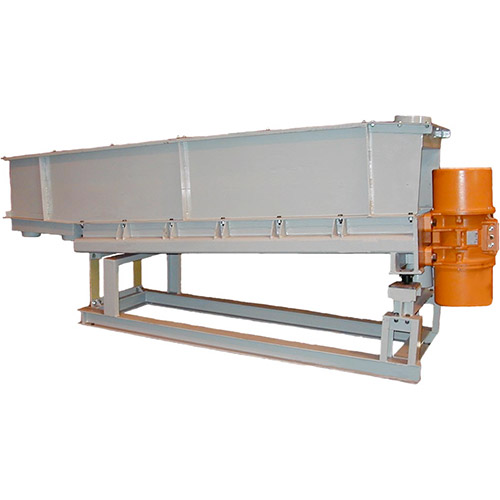

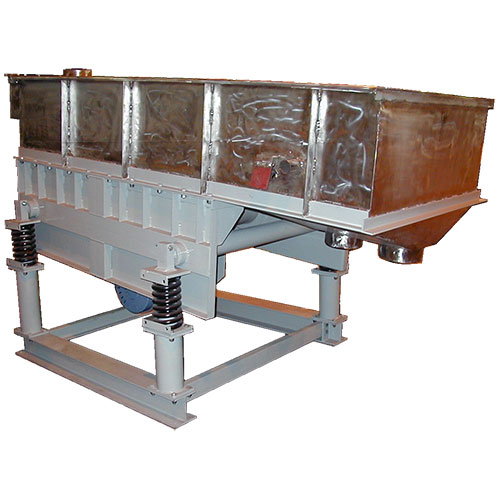

High Performer ScreenXHigh Performer Screen

MODELS HPS 26, HPS 36, HPS 48

  • High frequency linear stroke vibrating motion
  • Alternative to a gyratory vibrating motion circular screen
  • Screen box design separate from vibrating unit make it possible to construct box using any material, from carbon steel, stainless steel, specialty steels or even plastics
  • 45 degree up-front linear stroke
  • Available in many standard sizes: HPS 26 (2' x 6'); HPS 36 (3' x 6'); HPS 48 (4' x 8')
  • Easy deck angle adjustment for retention control
  • Available with optional Patent Pending Air Explosion Screen Cleaning System (pictured above) which helps prevent blinding in difficult slurry applications
  • For high solids kaolin
  • For precipitated calcium carbonate
  • For clay slip
  • For a variety of wet or dry sizing operation

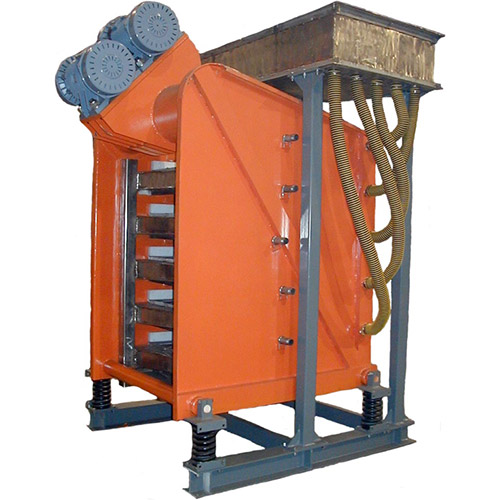

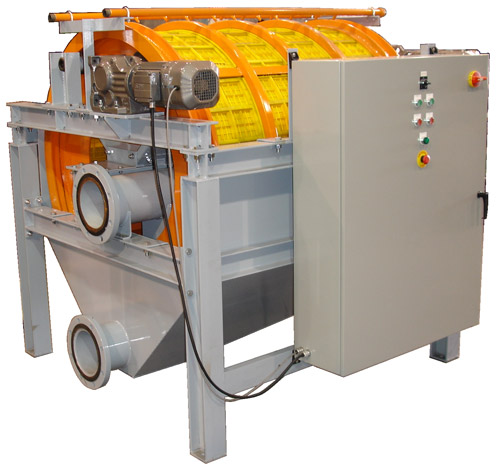

Parallel Feed Screen (US Patent)XParallel Feed Screen (US Patent)

MODELS PFS 44500, PFS 44515

  • Five (5) parallel decks stacked at 15 degree angle
  • Polyurethane Screen Panels fastened with side bar and wedges
  • Two models - 0° horizontal and 15° downhill decks
  • High frequency linear stroke vibrating motion
  • Direct driven by reliable vibrator motors
  • Ten (10) way distributor box arranged directly above screen box, the discharge pipe connected to the feed inlet pipe outside of screen box with rubber hose
  • High capacity wet fine sizing screen
  • Sizing Screen in re-grind circuit prevents over grind
  • Gangue separation in iron ore processing
  • Residue removal in Kaolin processing
  • Polishing Screen in fine coal processing
  • Scalping screen before flotation

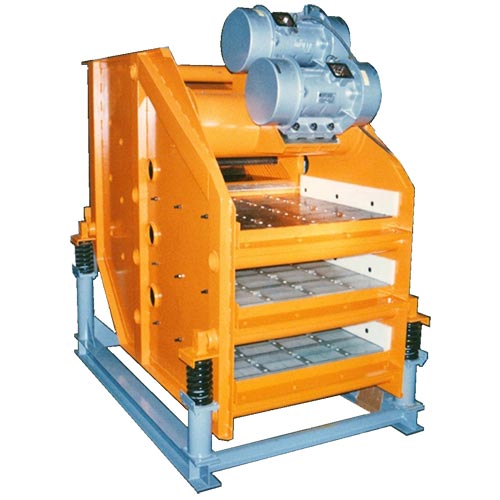

Vertical Sizer ScreenXVertical Sizer Screen

MODELS VSS 4423

  • High frequency linear stroke vibrating motion
  • Center transition triple deck configuration
  • High capacity with vertical stratification of materials
  • Efficient separation with roughing separation at inclined deck and cleaning/scavenging separation at horizontal deck
  • For dry fine particles sizing operation ranging from 1 inch to 20 mesh (25 mm to 850 micron)
  • For versatile application with 2 to 4 products discharges
  • For dedusting operation
  • For fine aggregate production
  • For sizing of industrial minerals

Ultra Sifter ScreenXUltra Sifter Screen

MODELS USS 28, USS 38, USS 412, USS 516

  • Low frequency horizontal plane sifting motion
  • Direct driven by reliable vibrator motor
  • Separate construction of screen box from sifting mechanism
  • Single Deck, Double Deck, Triple Deck Screen Box interchangeable
  • Pretension framed screen panel fastened with side bar and wedges
  • Rubber and leaf spring suspension
  • 5°, 10°, and 15° degree screen deck inclinations available as standard
  • Ball Tray or Air Piston Impactor applicable to prevent screen blinding
  • Totally enclosed top dust covers
  • Efficient dry sizing ranging from 4 mesh (5 mm) to 200 mesh (75 micron)
  • Scalping
  • Dedusting
  • Polishing
  • Removal of trash and foreign materials

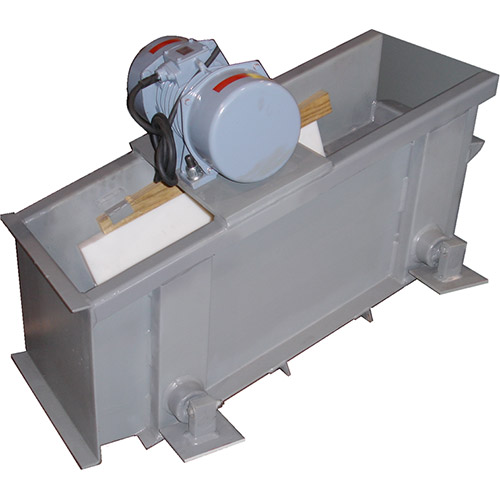

Circular Motion ScreenXCircular Motion Screen

MODELS CMS 12, CMS 153, CMS 26, CMS 38

  • High frequency circular stroke vibrating motion
  • Polyurethane modular or profile wire screen
  • Direct driven by reliable vibrator motor
  • Water spray bars with beaver tail nozzles optional
  • Easy change of deck angle for proper retention time
  • Wet sizing prior to gravity concentrator
  • Scalping (removal of coarse materials)
